volt 2 E-foil

Starting
USD 6995

oppacity effect.png

THE NEXT BIG THING

volt black.png

The Volt 2 e-foil is the latest addition to the mantafoils range. It benefits from years of foiling design experience.

Computer fluids dynamics designed wings provide best in class stability with low drag for enhance efficiency and higher flight time.

With the Volt 2 e-foil ride smoothly above waters and enjoy the magic of foiling.


French Design, Assembled in UAE

volt 2 shop_0009_volt2.28.jpg.jpg

120

Min

40

Km/h

40

km

Flight time

Max speed

Range

2 MASTS CONFIGURATIONS, FOR EVERY STYLES


Volt 2 - 85cm

85cm Mast is perfect for intermediate and advanced riders.

It is particularly suitable for carbon boards and allows riders to carve like nothing else.

The extra mast length also provides peace of mind when fast riding or riding in choppy waters.


Volt 2 - 85cm

85cm Mast is perfect for intermediate and advanced riders.

It is particularly suitable for carbon boards and allows riders to carve like nothing else.

The extra mast length also provides peace of mind when fast riding or riding in choppy waters.

2 WINGS, ENDLESS POSSIBILITIES


FREERIDE WING
1600 cm2

The Freeride 1600 cm2 efoil wing is the prefered choice for most riders.

It enables stable low  to medium speed flights and long range.

It will also allow heavier riders to fly easily.


GLIDER WING
1350 cm2

The Glider 1350 cm2 high aspect efoil wing will improve top speed at the expense of lower range and lower lifting power.


WATER COOLED

Volt 2 Electronic Speed Controller (ESC) is located under water in front of the motor allowing for a permanent water-cooled solution.

Designed and tested in 35 degree Celsius  water with air temperatures reaching 40 degree Celsius.

Low temperature running electronics provides the rider with the full power all the time. It also preserve the system and allows for higher reliability over time.

On the Battery side, water can freely flow into the compartment and help cooling down the battery.

The Volt 2 mast head features one way ball valves that let water flow out while riding up in the air.

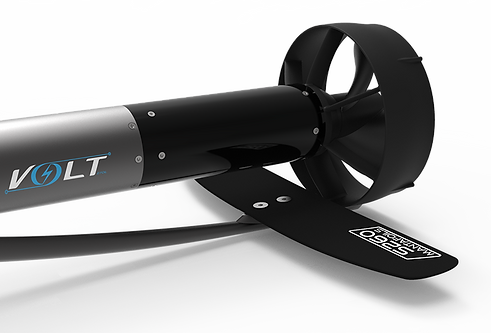

HIGH EFFICIENCY PROPELLER

Our purpose computer generated propeller provides high Thrust output at full power as well as high efficiency at normal riding speeds.

stab angle.png

ADJUSTABLE STABILIZER

The Volt 2 efoil features an innovative adjustable stabilizer angle Sliding stabilizer forward or backward.

This system allows easy and precise stabilizer angle tuning.

As a result the user can adjust efoil lifting power to its individual preference.

Set higher angle to Stand more in the front and feel more front foot pressure.

Set lower angle to stand further back and increase back foot pressure.

A lower angle will result in slightly higher flight efficiency and higher top speed.

VOLT REMOTE

bluetooth W.png

The Volt Remote is packed with smart features improving safety and riding comfort.

Combined with our high end motor controller, it provides one of the most pleasing foiling experience. smooth ride, smooth throttle control.

The Volt remote can alert the rider when battery is low, estimate remaining flight time and travel distances. It can even record your session telemetry and display it with the Mantafoils Phone app (*feature to be released Summer 2021)

Efoil battery.png
Waterproof

VOLT SMART BATTERY

The Volt smart battery pack lots of energy in one single unit allowing for the best ride time for an efoil.

Typical ride time of 90 minutes is common and a maximum ride time of 120min is achievable.

The battery is fully waterproof (IP67 when connectors are plugged in).

A smart BMS (battery management system) with bluetooth connectivity provides safety features such as short circuit protection, temperature and discharge monitoring etc...

The battery status is accessible via the Mantafoils smartphone application.

The battery can also be connected to the remote control and can transmit real-time health data.


LESS IS MORE

The Volt 2 e-foil requires less connections than most e-foils currently available.

2 power leads and one receiver data cable is all what you need to connect. It's that simple!

Less wires not only gets you faster onto the water but it also means increased reliability.

The system gets activated once the board's cover is in place.

Likewise, once the board's cover is opened the system immediately shuts off.

We paid particular attention to the data cables connectors and have adopted multi cable design that preserves your foil main connector.


Carbon 65L

145x55cm

Advanced Level

rider weight <85kg


Carbon 95L

180x76cm

All Levels

rider weight <90kg

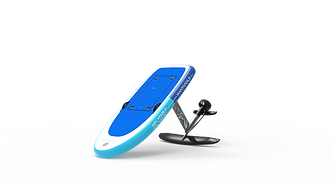

OUR BOARDS

The Inflatable 110L is the model that will fit most riders. it's the perfect balance between size, volume. it's easy to transport when deflated and folded in two.

The inflatable material is robust and will not dent itself when on the floor surface. It will also avoid deck damages when handled on sensitive surfaces such as yatch decks for example.

The Inflatable 145L is basically the same as the Inflatable 110L but has 35L additional to allow the heavier riders to have easy water starts.

The Carbon 65L is the most extreme board of the range. It's very low volume and size makes it the perfect toy for advanced riders looking to ride with lightest equipment.

The small board size allows for high carving angles and high speed with minimum wind disturbance.

The Carbon 95L features high rigidity and medium volume for good all around performance.


Inflatable 110L

160x70cm

All Levels

rider weight <90kg


Inflatable 145L

180x76cm

All Levels

rider weight >90kg


Customize your board

Carbon boards are available in various finishes

volt 2 shop_0009_volt2.28.jpg.jpg

2 in 1 SETUP

The Volt 2 efoil boards can also be used for wingfoiling while fitting a conventional 165x90mm plate mount foil.


Starting
USD 6995

*Actual product final specification and design elements may differ. Above content is only indicative
